Battery
Management System with Microsoft .Net Micro Framework on Gadgeteer
Platform
 |
| |
|
|
||
|
|
|||
| |
|
|
|
|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
| |
|
|||
|
This page is going to be a work-in-progress as I add more details and decide which, if not all, the components to make open source. This project builds on my existing LTC6803 BMS slave boards that are running a differential SPI bus and communicates with them through a custom built driver board that is designed to work with the Gadgeteer system.The custom interface provides both a CAN driver to a standard D-9 connector and an RJ45 connector that can communicate with up to 16 of the LTC6803 Slave boards. Software written in C# under the Visual Studio environment automatically finds the Slave boards and can poll them for cell voltage and temperatures and provide control over balancing circuitry. Interrupts will call user code should an error occur and will also make periodic calls to provide updates to the cell information.

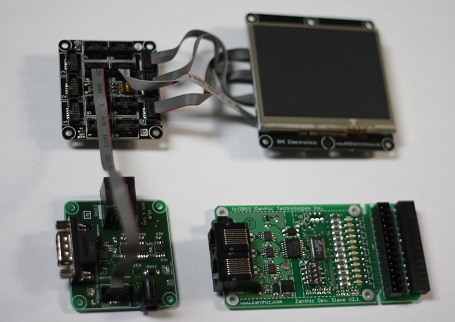

The Gadgeteer compatible Spider board was purchased from GHI
Electronics (see link below) The board in the lower right is my

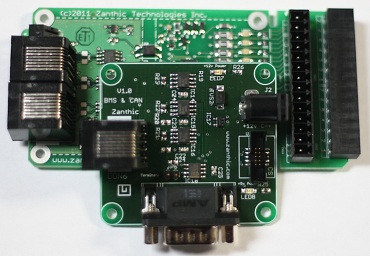

LTC6803 Slave board that has optically isolated differential
communications to the driver board and up to 15 other slave boards in a
"daisy chained" fashion. The connectors on the right provide
connection to 12 series lithium ion cells with either low current
internal balancing or higher current external balancing.

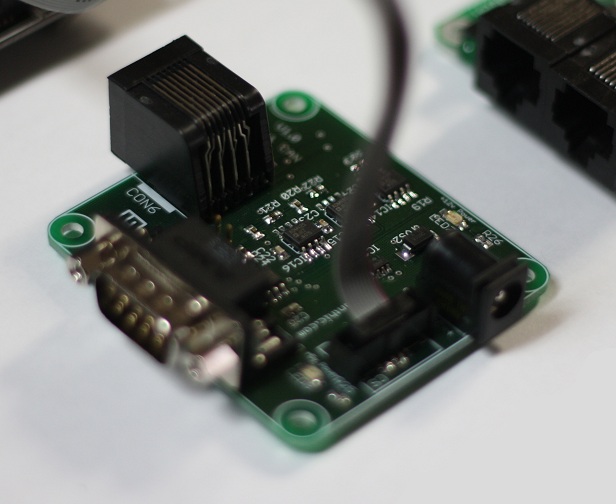

 A close up of the custom built
interface between the Gadgeteer board and the CAN and BMS network.
The CAN network uses a standard driver IC and the BMS network
uses differential drive circuitry to improve the noise immuniuty of the
SPI bus used to communicate with the LTC6803 Slave boards. Gadgeteer information can be found here: http://www.netmf.com/gadgeteer/ The GHI Spider board is available from: http://www.ghielectronics.com/catalog/product/297/ (All product names and trademarks are the property of their respective owners) My Additional BMS projects can be found here: Lithium Ion Battery Management System (BMS) with Linear 6802 Slaves Lithium Ion Smart Charging System Battery Management Processor If you would like to ask additional questions, please contact me by email at
|
