Freescale HC12 based processor board with plug in communications options

This was a project I did for myself as an experimental board for testing various plug in options, including

  • RS232
  • XBee Zigbee radio
  • Ethernet (Digi or XPort)
  • CAN (Up to 5 ports)
  • USB
Because any two devices can be plugged into the board, it can also act as a bridge between any two communication methods.  This is an on going project.

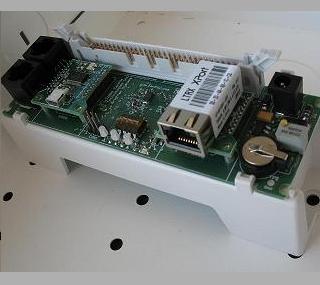

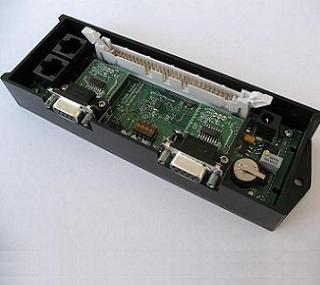

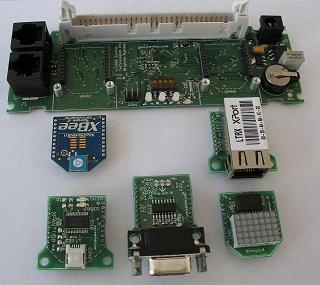

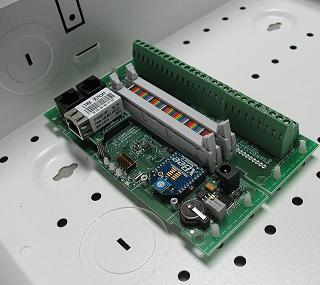

The pictures show the board with some of the plug in options as well as 3 different methods of mounting.  The cabinet used is a standard home automation cabinet.
